Description:

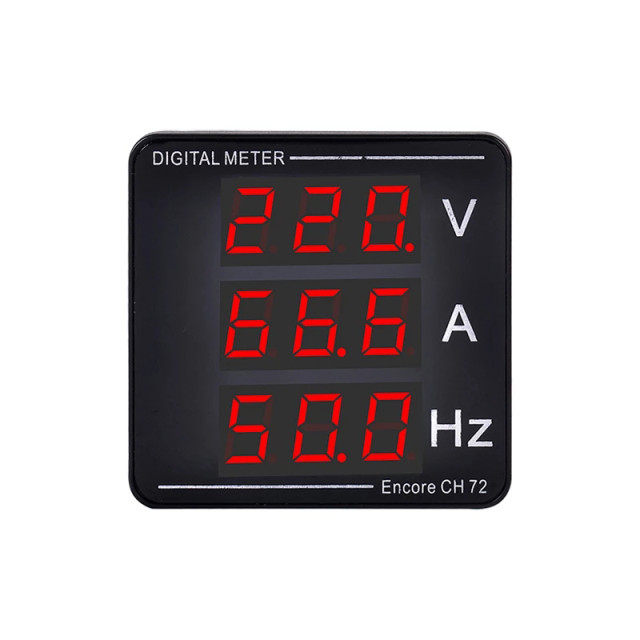

The digital AC voltage, current and frequency are displayed on the same meter at the same time. The meter does not need to add power supply and transformer. The meter comes with a 120A precision small transformer.
Specification:
Voltage: AC50-500V
Current: AC0-120A
Frequency: 10-99.9Hz
Dimensions: 72*72*32mm
Hole size: 68*68mm (embedded installation)
Measurement accuracy: 1%±2 words
Package Included:
1 × measuring instrument

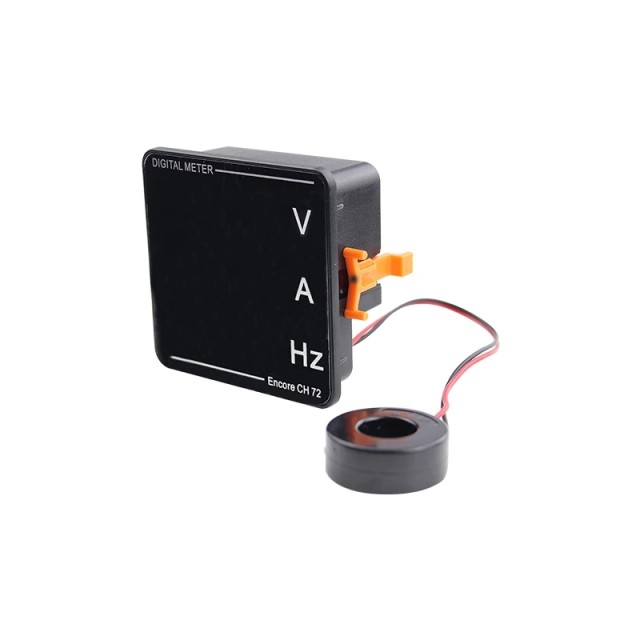

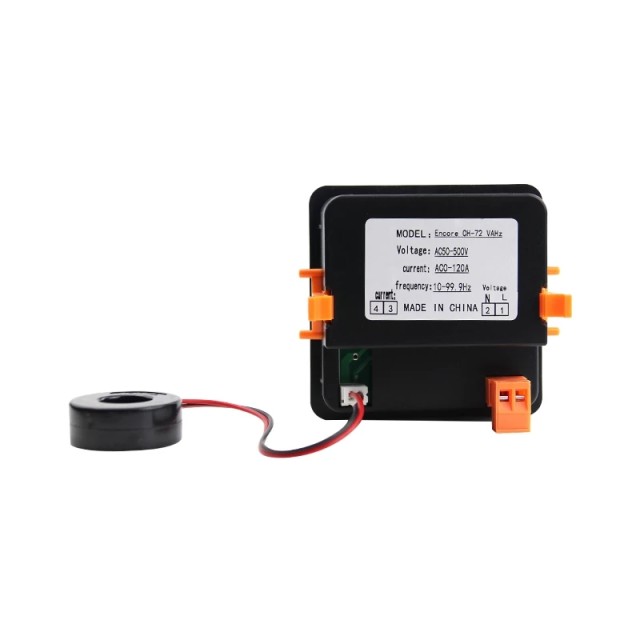

120A transformer (hole diameter 15mm) can meet the national standard 21-25 square millimeter standard copper wire through
This instrument is only suitable for pure AC 50-60HZ mains power supply. It cannot be used for square wave, inverter output, and sine wave circuits with modified sine waves, otherwise the instrument will be permanently damaged!
