Description:

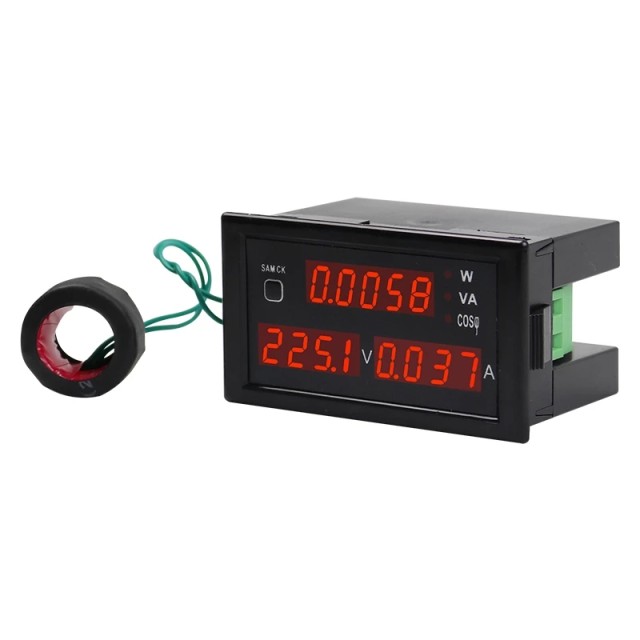

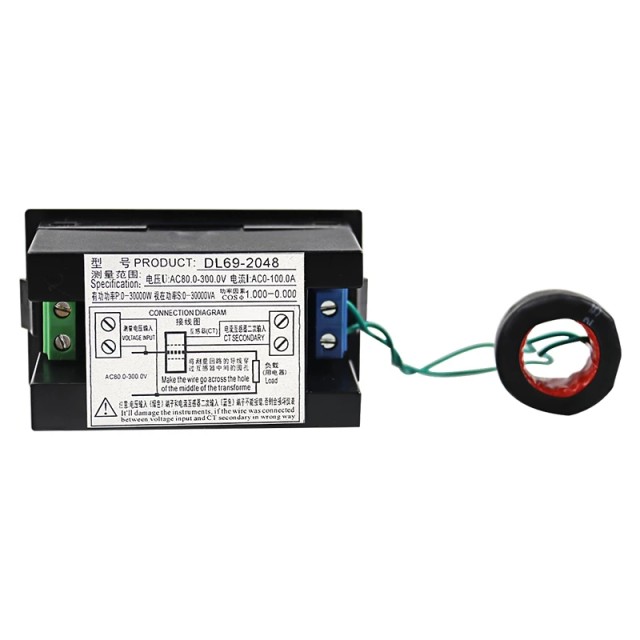

The DL69-2048 digital display multifunction meter simultaneously displays the measured AC voltage, AC current, active power, apparent power and power factor on the meter.
Specification:
1. Measurement accuracy: 1%±2 words (accuracy level: level 1)

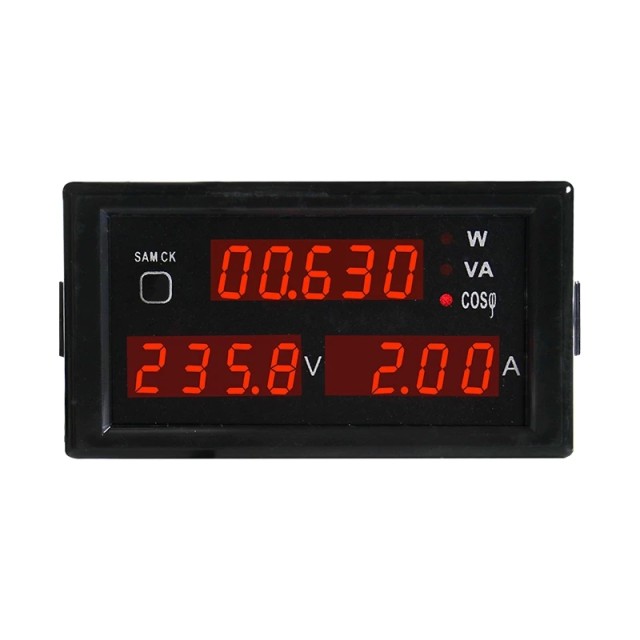

2. Display: Voltage and current display 4-digit red 0.31 inch LED digital tube, active power, apparent power and power factor 5-digit red 0.31 inch LED digital tube.
3. Measuring range: AC voltage: AC80-300V 200-450V
4. Measuring range: AC voltage: AC80-300V (single-phase) 200-450V (three-phase) AC current: AC0-100.0A, when the measured current is less than 100A, the current display resolution is 0.01A, when the measured current is greater than 100A, the display resolution Rate of 0.1A, automatic range conversion (automatic shift of decimal point) true RMS measurement
5. Active power: (measurement voltage AC80-300V) 0-30000W (AC200-450V: 45000W)
6. Apparent power: (measurement voltage AC80-300V) 0-30000W (AC200-450V: 45000W) power factor: 1.000-0.000
7. Measuring speed: about 2 times per second
8. Dimensions: 79*43*42mm
9. Installed size: 76*39mm (embedded installation)
Package Included: 1 × Multifunction meter
