Description

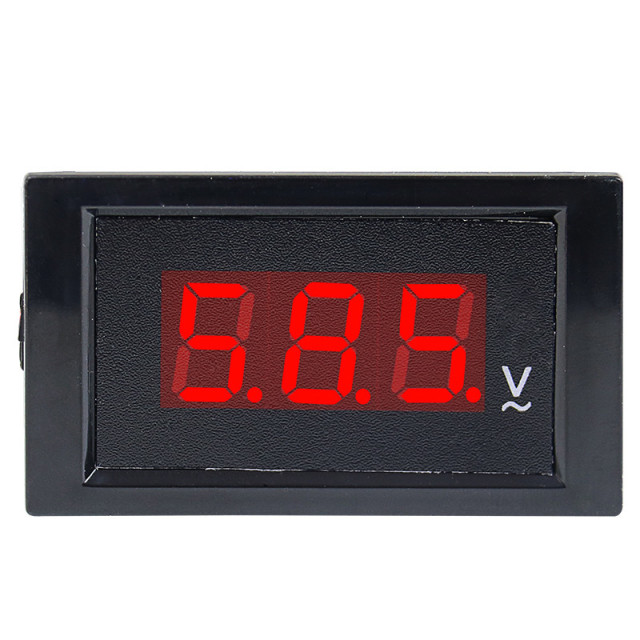

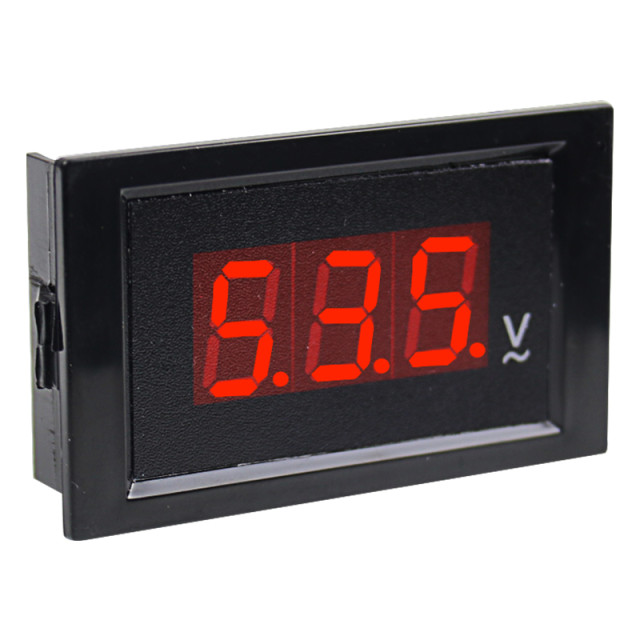

L85-20 is a small-sized economical digital electric measuring instrument, which is mainly used for real-time measurement of AC voltage in electrical circuits, and uses LED digital tube to display in digital direct reading mode. It is widely used in substation automation, distribution automation, testing equipment, voltage regulators, etc. The product has high precision, high stability, high reliability, low power consumption, small size and easy installation.
Specification
Accuracy level: Level 1
1. Measurement accuracy: 1%±2 words
2. Measuring speed: about 2 times per second
3. Working power supply: no working power supply required
4. Dimensions: 70*40*26mm,
5 Hole size: 68*38mm.
6. Measuring range: AC50-500V
Note: This instrument is only suitable for the commercial power supply with pure AC 50-60HZ, and cannot be used for square wave, inverter output and correction wave sine wave circuit measurement, otherwise the instrument will be permanently damaged!
