Description

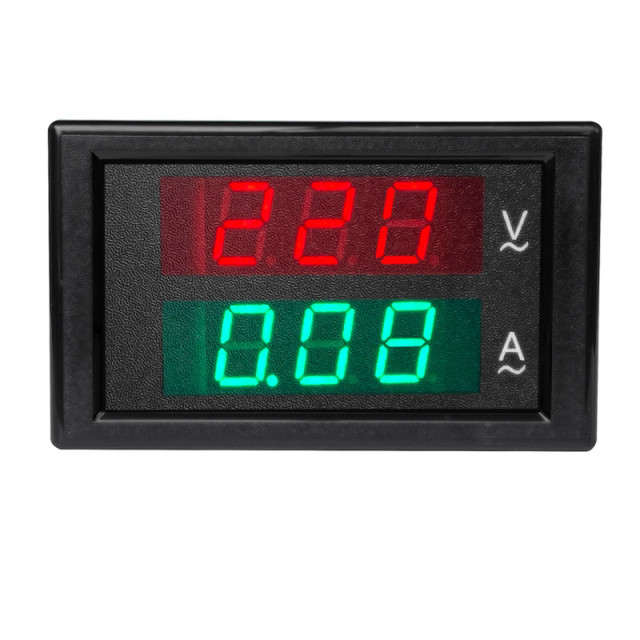

DL85-2041-2042 Digital AC Voltmeter Ammeter is to display the measured AC voltage and AC current separately on the same instrument. The meter does not need to increase the working power supply and AC transformer (the meter itself is equipped with a precision transformer). Widely used in power distribution automation, such as voltage stabilizers, teaching appliances, home appliance repairs, plug-in boards, small household distribution boxes, stage audio, timing devices, etc.
Specification
Measuring range: AC voltage AC 80-300V 200-450V, AC current AC 0-50A 0-100A 1-200A
Power consumption: 0.2VA
Measuring speed: about 2 times per second
Dimensions: 70 (length) * 40 (width / height) * 39 (depth) mm
Hole installation size: 68*38mm (embedded installation)
Model Description:

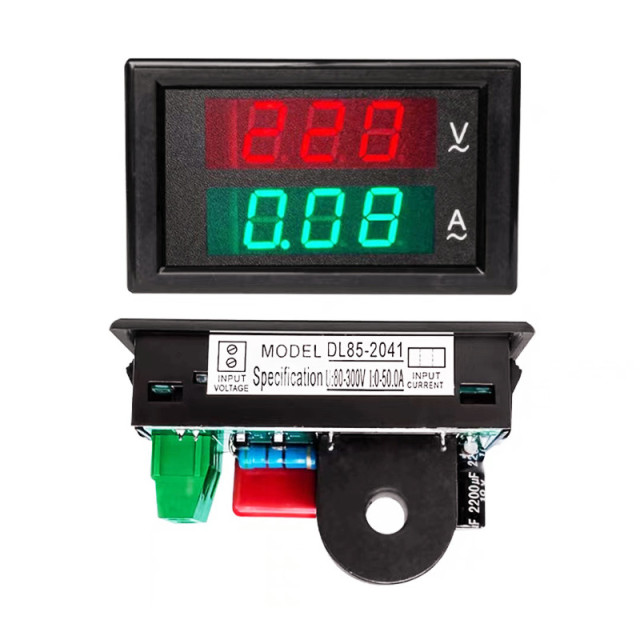

1: DL85-2041 type: the transformer is fixed on the meter

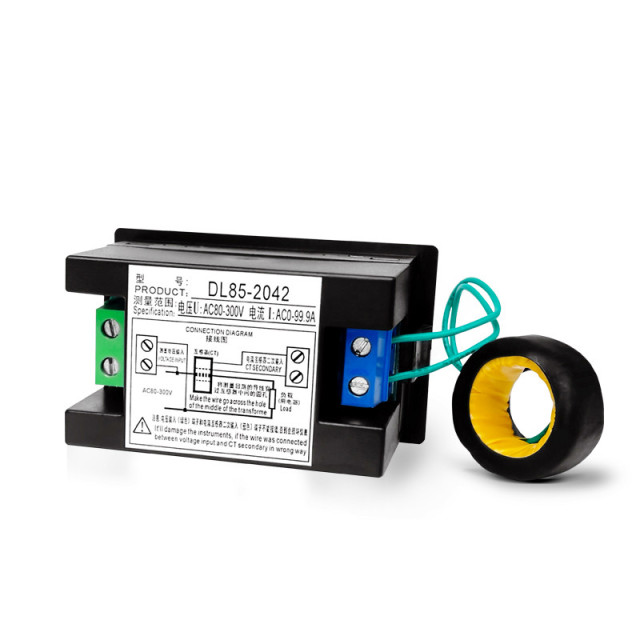

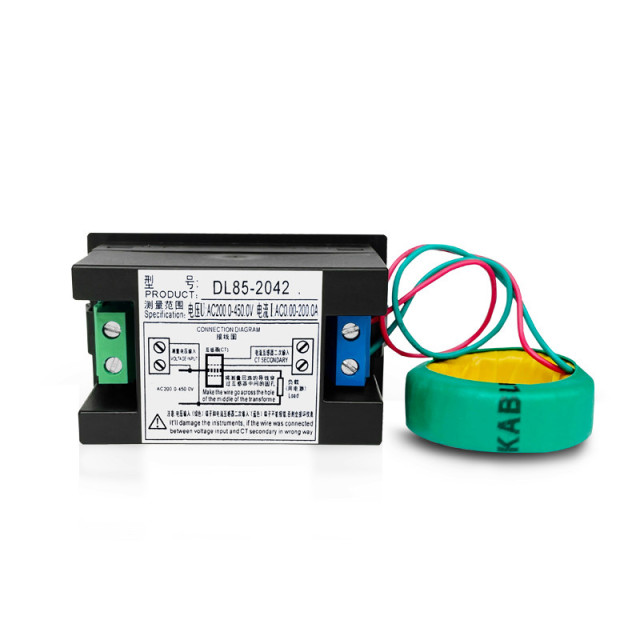

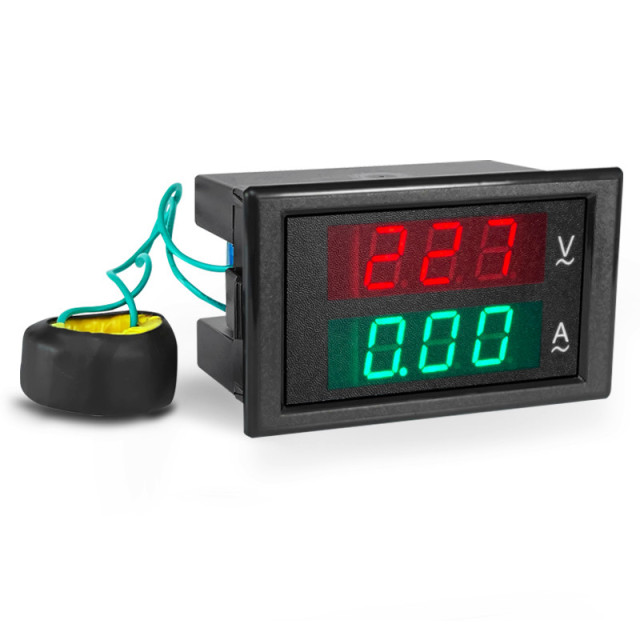

2: DL85-2042 type: the transformer is separated from the meter, the transformer can be installed according to the actual position of the measurement, and the secondary end lead of the transformer can be lengthened by 0.5-3 meters without affecting the measurement accuracy.
