Description

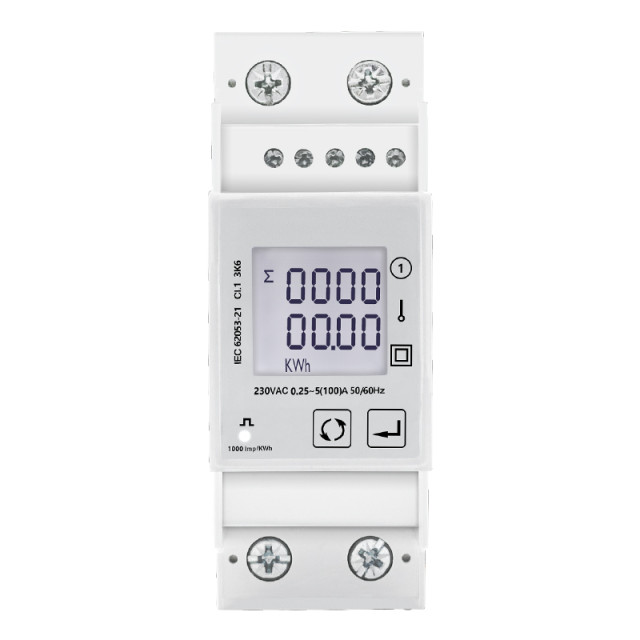

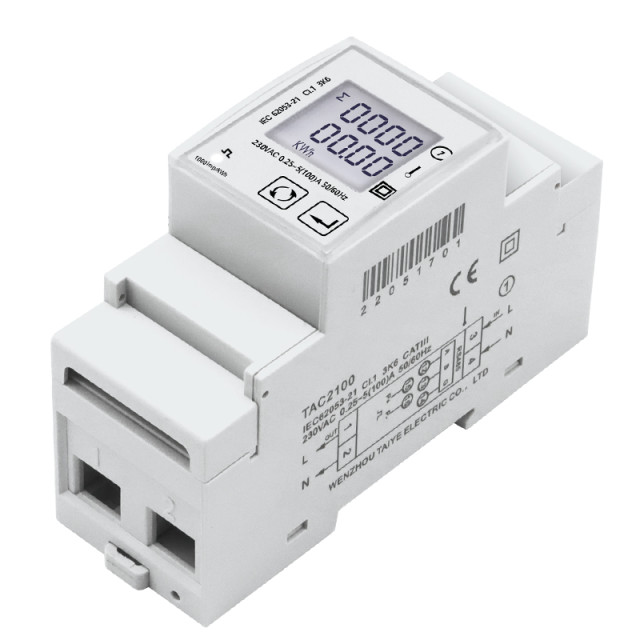

TAC2100 series products are single phase multi-function rail installtion enegery meter. This series of products can support a variety of electric parameter measurement analysis, such as voltage, current, the four quadrant power parameters, power factor, etc.Meanwhile they can provide a variety of electrical energy parameters measurement, such as two-way active energy, reactive energy, monthly and daily energy consumption statistics.This series of products also can support the analysis of electric power parameter measurement in one phase two wires grid environment, is suitable for power monitoring for photovoltaic inverter ,new energy electricity consumption statistic analysis,real time power monitoring and a variety of other environments, has the multi-function, high stability and long life characteristics.
This series of products with RS485 or MBUS communication interface, baud rate maximum support 9600bps, supporting Modbus, MBUS communication protocols. It can easily realize the function of remote data read, and adopt the design of large-screen LCD and touch-sensitive key, which can easily carry out the local view and set operation of various parameters.
Characteristics
1、Multi-function parameter measurement, providing voltage, current, active power, reactive power, apparent power, power factor, phase Angle, etc.
2、Provide a variety of statistical data and local storage functions, such as two-way power, demand and other statistical data. Provide monthly electricity consumption statistics for the last 12 months and daily electricity consumption statistics for the last 31 days
3、supports the dual-timing function of the meter startup running time and load running time.
4、supports the access of a 2-tariff switching signal for metering at 2-tariff energy.
5、Support RS485 communication function, baud rate up to 38400bps, support Modbus RTU, Mbus(Option) protocol.
6、Supports one optocoupler pulse output interface, and output parameters can be set.
7、LCD refresh time is 1 second, support manual or automatic scroll display (configurable)
