Measuring Energy Range: 0 to 999999.999 kWh
Display Type: LCD

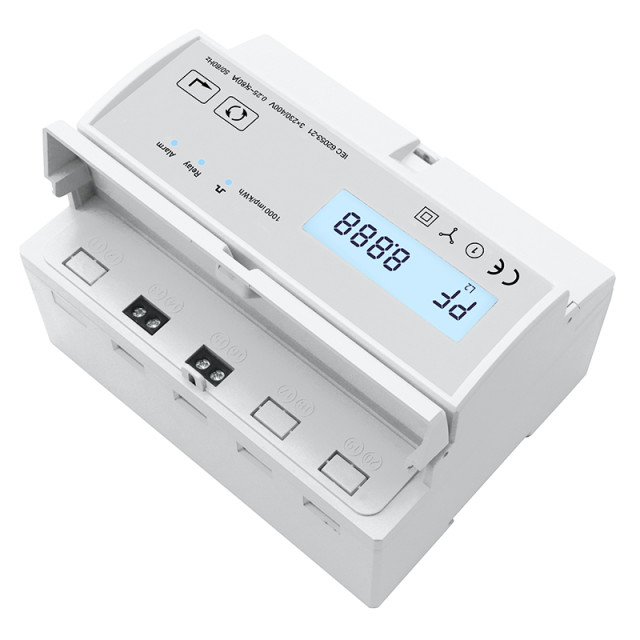

Model Number: TAC7300
Certification: CE
Power Supply: AC
Phase: Three Phase
Rated Voltage: 230V
Dimensions: 126 x 98 x 80 mm
Operating Temperature: -25 to +55℃
Accuracy Class: ±1%
Max Operating Current: 50A - 79A
Communication Type: RS485
Pulse Constant: 1000imp/kWh
Max. Current: 80A
Installation Type: Din Rail
Frequency: 45 ~ 65 Hz
Description
TAC7300 series products are multi-functional charge-control energy meters designed for the power consumption management of campuses and parks, power charge management of shopping malls, power system utilities, and power monitoring requirements of smart buildings. control systems, SCADA systems and energy management systems.
TAC7300 series products are three-phase multi-function cost-controlled electric energy meter series products for power parameter acquisition and analysis and remote switching control. This series of products can support the measurement and analysis of various power parameters, such as voltage, current, four-quadrant power parameters, At the same time, it can provide measurement of various electric energy parameters, such as bidirectional active and reactive power, monthly and daily power consumption statistics, etc.
Characteristics
1. Multi-function parameter measurement, providing rich measurement data such as voltage, current, active power, reactive power, apparent power, power factor, phase angle, etc.
2. Provide a variety of statistical data and local storage functions, such as two-way power, demand and other statistical data; provide monthly power consumption statistics for the last 12 months, and daily power consumption statistics for the last 31 days.
3. Support power consumption parameter monitoring and alarm function.
4. Support 1-channel pulse optocoupler output interface, and output parameters can be set.
5. Support LoRa, NB-IoT, 4G and other wireless communication methods (optional).
6. TH35-7.5 type guide rail installation.
7. Large-screen LCD display, white backlight
