Description:

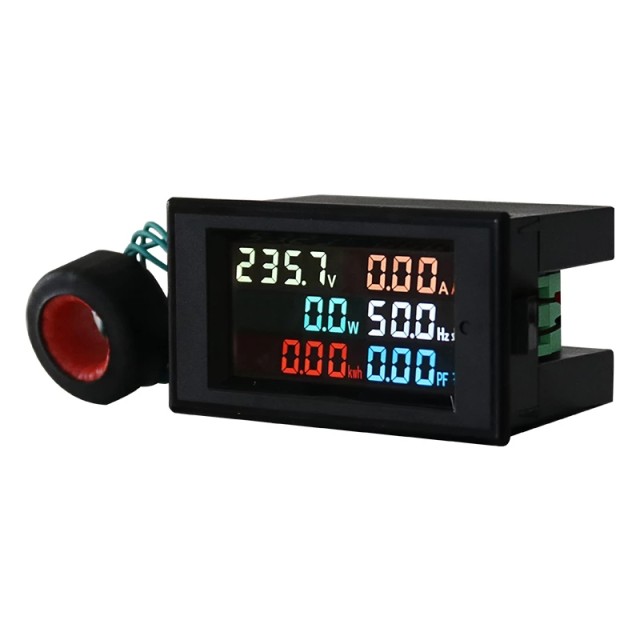

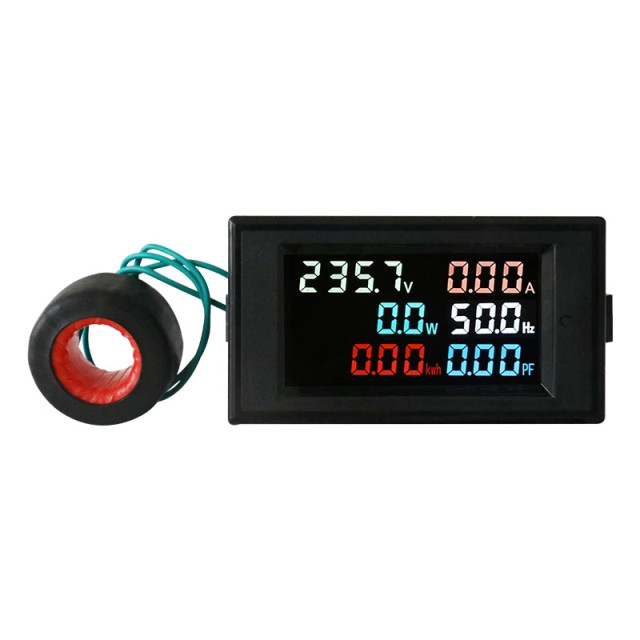

D69-2058 multi-function Digital meter can measure AC voltage,AC current,active power,power factor,power frequency electric energy.HD LCD has adopt for display module.
Specification:
1. Accuracy: 1% 2 words
2. Range:
AC voltage: AC 80.0-300.0V/200.0-450.0V(You should select the suitable type of
meter when your making order)
AC current: AC 0-99.99A, minimum resolution is 0.01A
AC current: AC 0-40.00A, minimum resolution is 0.01A
power frequency: 45.0Hz-65.0Hz
power factor : 0.00-1.00PF
active power: 0-45000W when the active power between 0 and 9999.9W, the display accuracy is 0.1W
Electric energy: 0-9 99999kwh,when the electric power between 0 and 999.99kwh, the display accuracy is 0.01kwh, when between 10000.0-9999.9kwh, the display accuracy is 0.1kwh,when between 10000.0 and 999999kwh, the display accuray is 1kwh.
3.Speed: 2 times per second
4.Size: 79*43*48mm
5.Installation Size: 76*39mm
6.Auto-saving: when power off, the electric energy will be saved. The saved electric energy will
Be accumulated continue when the meter power-on next time.
Package Included: 1 × multi-function meter
