Description:

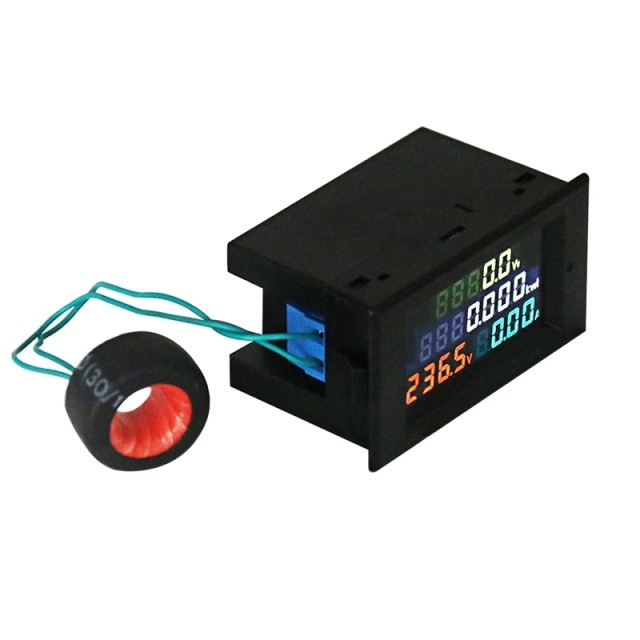

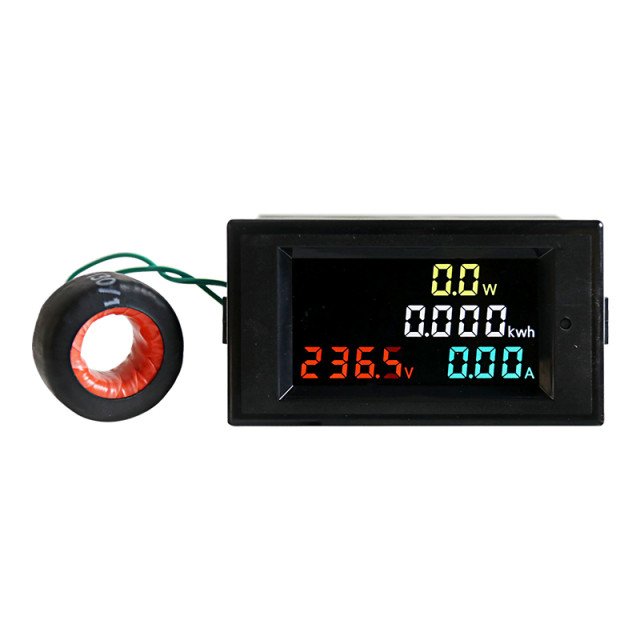

D69-2049 digital display multifunction meter is to display the measured AC voltage, AC current, active power, electric energy./electric energy. The display part of the meter adopts a color high-definition LCD full-view display. 178° wide visibility angle.
Specification:
Product name: LCD digital display multi-function meter
Measuring range: AC voltage: AC40.0-300.0V (or AC200.0-450.0V)
AC current: AC0-99.99A, current display resolution is 0.01A, when it exceeds 100A, it will display 100.0A. Active power: 40-300V display range 0-30000W, 200-450V display range 0-45000W, between 0-9999.9W The display resolution is 0.1W, [the rest are 1W]
Electricity: display 9999.999 within the display range of 0-10000KWH, display 00000.99KWH above 10KWH, the maximum display 9999999KWH
Model: D69-2049
Dimensions: 79*43*48
Installation method: panel installation
Measurement accuracy: 1%±2 words
Measuring speed: 2 times per second
Function test: AC voltage, power, current, electric energy/electricity
Package Included: 1 × LCD digital multi-function meter with CT
