Description:

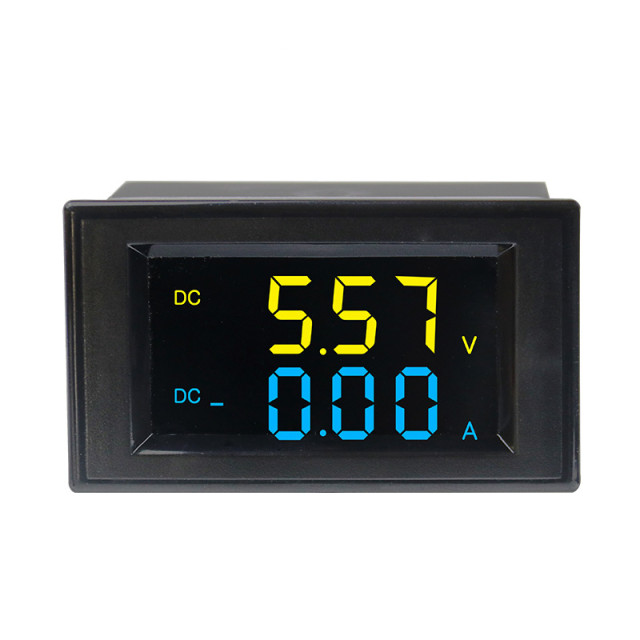

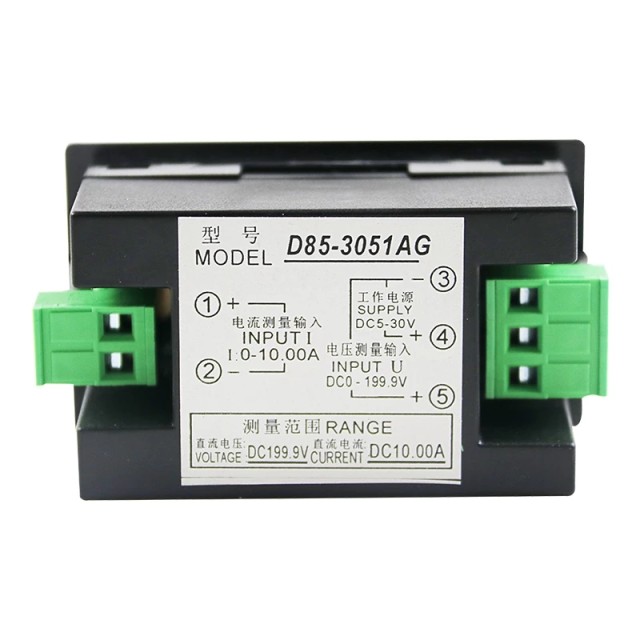

D85-3051AG digital DC voltage and current dual display meter.
Specification:
1. Measurement accuracy: 1% plus or minus 2 words
2. Display: LCD high-definition liquid crystal color two-color display
3. (Viewable screen size: 43*25mm)
4.178° wide viewing angle (no blind spots for viewing)
5. Measuring range: DC voltage (1) DC0-19.99V, 0-199.9V, 0-600V (need to provide an additional working power between 5-30V) (2) measure the voltage between DC5-30V (measurement voltage can be As the working power supply of the meter, the meter does not need to add a working power supply, but the measuring voltage can only be measured from 5V, and it cannot be measured below 5V. If you need to start the test from 0V or the measuring voltage is higher than 30V, you must add a set of 5-30V The working power supply, please pay attention to this point when using!
Direct current: DC0-1.999A, 0-10.00A, 20A/75mV, 50A/75mV 100A/75mV, 200A/75mV...
6. Power consumption: ﹤0.5VA
7. Measuring speed: about 2 times per second
8. Dimensions: 70*40*39mm
9. Installation size: 68*38mm
Note: When ordering a meter with a current measurement range of 10A (including 10A), the meter has a built-in shunt, and the customer does not need an external shunt when using it. If the meter purchased by the customer has a measuring range above 10A, there is no shunt inside the meter, and the customer needs to purchase another shunt with the same specifications as the measuring range of the meter.
Package Included: 1 × D85-3051AG
