Description:

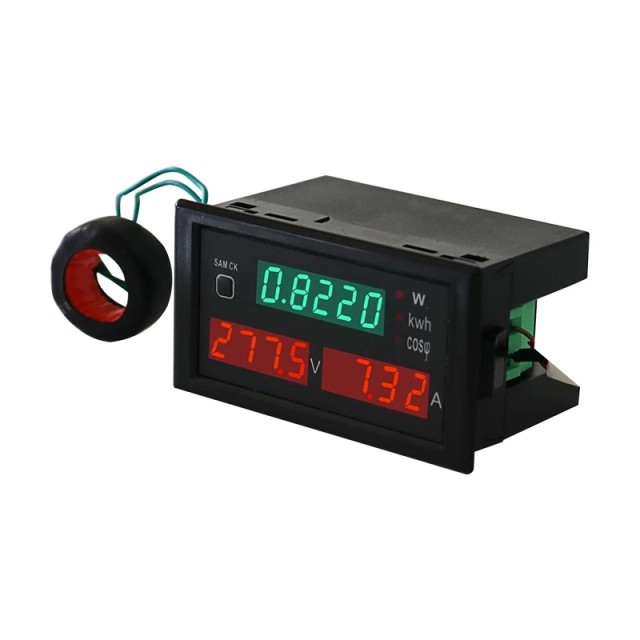

The DL69-2047 digital display multifunction meter simultaneously displays the measured AC voltage, AC current, active power, electric energy (electricity/electricity), power factor and electric parameters at the same time on the instrument.
Specification:
1.Accuracy: 1%±2 words

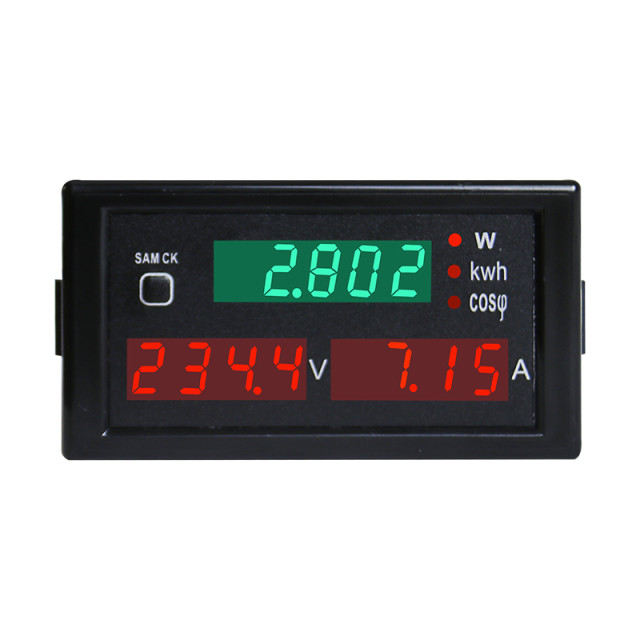

2.Display Mode: AC voltage and power factor use four red led of 0.32-inch
AC current use four red led of 0.32-inch
Active power, electric energy use five green led of 0.32-inch
3.Range: AC voltage :
AC 80.0-300.0V/ AC 200.0-450.0V
AC 0.0-100.0A ( when measure signal lower than 100A, the accuracy is 0.01A, when measure signal higher than 100A, the accuracy is 0.1A, the accuracy auto-change)
Active power: 0.0-30000W ( measure voltage AC 80.0 - 300.0V )
0.0-45000W ( measure voltage AC 200.0 - 450.0V )
Electric energy: 0.000-99999kwh
Power factor: 1.000-0.000
4.Speed: 2 times per second
5.Size: 79×43×48
6.Installation Size: 76×39
Package Included:1 × Multifunction Meter
