Description

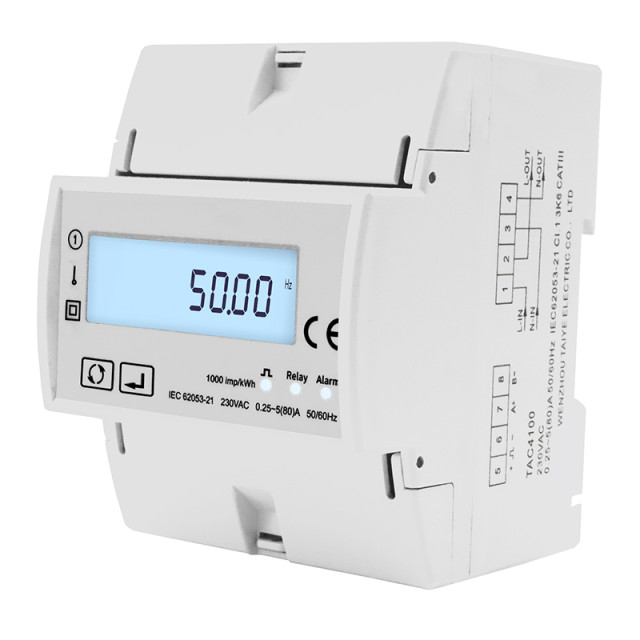

TAC4100 series products are single-phase multi-function cost-controlled energy meter series products for power parameter acquisition and analysis and remote switching control. This series of products can support the measurement and analysis of various power parameters, such as voltage, current, four-quadrant power parameters, At the same time, it can provide measurement of various electric energy parameters, such as bidirectional active and reactive power, monthly and daily power consumption statistics, etc. This series of products has RS485 communication interface, the highest baud rate supports 9600bps, supports Modbus and other communication protocols, and can easily realize the remote data reading function. Local viewing and setting operations, the product has a password protection function to ensure the data security of the product.
Characteristics
1. Multi-function parameter measurement, providing rich measurement data such as voltage, current, active power, reactive power, apparent power, power factor, phase angle, etc.
2. Provide a variety of statistical data and local storage functions, such as two-way power, demand and other statistical data; provide monthly power consumption statistics for the last 12 months, and daily power consumption statistics for the last 31 days.
3. Support power consumption parameter monitoring and alarm function.
4. Support 1-channel pulse optocoupler output interface, and output parameters can be set.
5. Support RS485 communication function, baud rate up to 9600bps, support Modbus RTU
6. Large-screen LCD display, white backlight, adjustable backlight lighting time.
7. LCD refresh time: 1 second, support manual page turning and automatic wheel display (can be set to switch)
