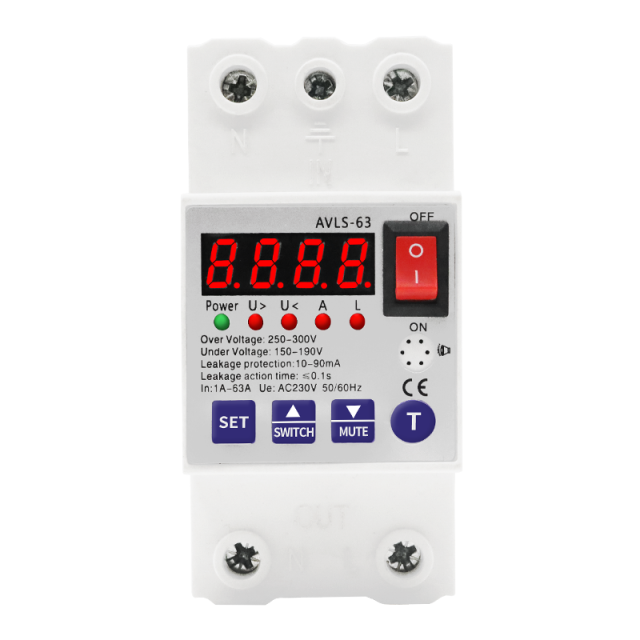

AVLS-63 Din Rail Leakage Protector

Describe

1、Detection before closing: The automatic reclosing power protection switch monitors the circuit and will not close in occurrence of any overvoltage, leakage, overcurrent and other failures.

2、Overvoltage protection: When the voltage between the live wire and naught wire of the input terminal is greater than the set value, it will trip the switch for protection.

3、Low voltage protection: When the voltage between the live wire and naught wire of the input terminal is less than the set value, it will trip the switch for protection.

4、Overcurrent protection: When the actual current is greater than or equal to 1.15 times the rated current for 3 seconds, it will trip the switch for protection.

5、Leakage protection: When the leakage current exceeds the set value or an electric shock occurs, the automatic reclosing switch will be disconnected within 0.1 seconds to ensure personal safety

Parameters:

Rated voltage: AC220V 50Hz/60Hz

Power consumption: <3W

Supply voltage: AC150V~300V

Leakage range: 10~99mA Leakage response time: ≤0.1S

Overvoltage range: AC250~300V Overvoltage response time: ≤0.1S

Low voltage range: AC150~190V Low voltage response time: ≤0.1S

Overcurrent range: 1~63A Overcurrent range response time: ≤0.1S

Short-circuit current: ≥31ln Short-circuit response time: ≤0.1S

Error in real-time current, voltage and leakage current: ≤5%

Max. failure records: 999

Temperature: -20~55℃

Storage temperature: -45~80℃

Volume: 106X92X70mm
