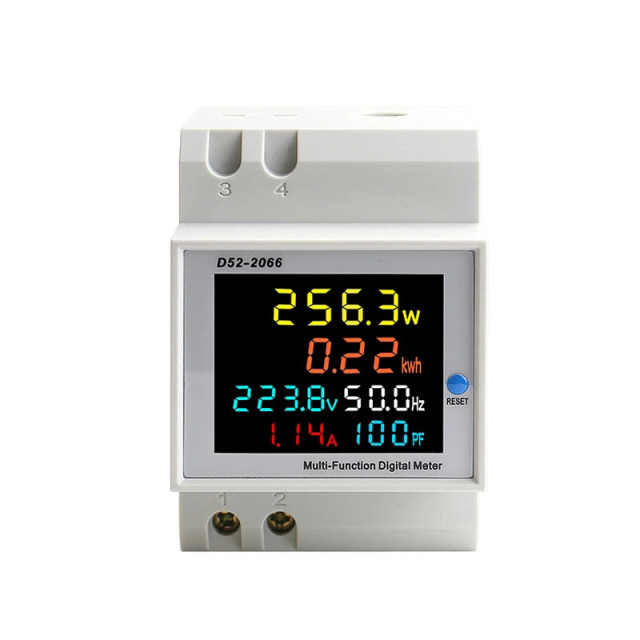

D52-2066 guide rail type digital display multifunctional measuring instrument.
D52-2066 guide rail type digital display multi-function meter simultaneously displays 6 parameters such as AC voltage, AC current, active power, power factor, frequency and electric energy on the instrument. The meter uses a color full-view high-definition LCD display to display the measurement results.
Description:
D52-2066 guide rail type digital display multifunctional measuring instrument.
D52-2066 guide rail type digital display multi-function meter simultaneously displays 6 parameters such as AC voltage, AC current, active power, power factor, frequency and electric energy on the instrument. The meter uses a color full-view high-definition LCD display to display the measurement results.
Specification:
Measurement accuracy: 1%±2 words
Measuring range: AC voltage AC40-300V, AC200-450V
Alternating current: AC0-100A, current display resolution is 0.01A
Power frequency: 45Hz-65Hz
Power factor: 0.00-1.00PF
Active power: the measurement range is 0-45000W, the display resolution between 0-9999.9W is 0.1W, and the rest is 1W
Electricity: the measurement range is 0-99999kwh, the minimum display resolution of 0-999.99kwh is 0.01kwh
1000.0-9999.9kwh minimum display resolution is 0.1kwh
The minimum resolution of 10000.0-99999kwh is 1kwh
Measuring speed: about 2 times per second
Dimensions: 54*80*64mm

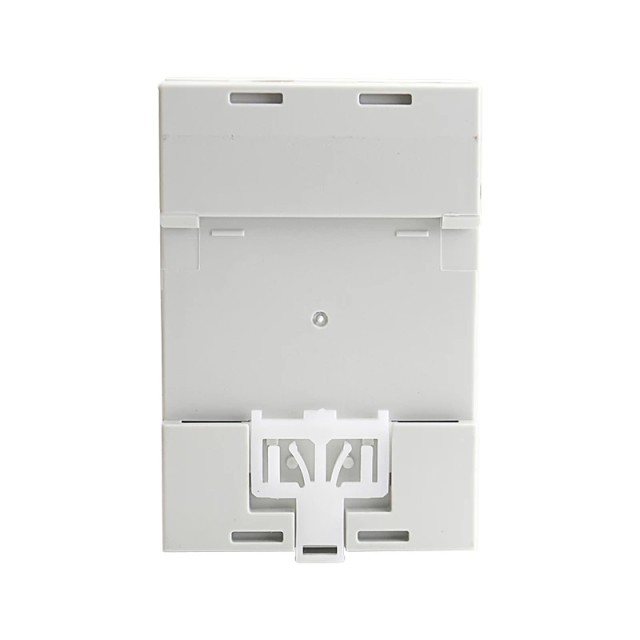

Installation method: rail type
Package Included: 1 × D52-2066 multi-function instrument
